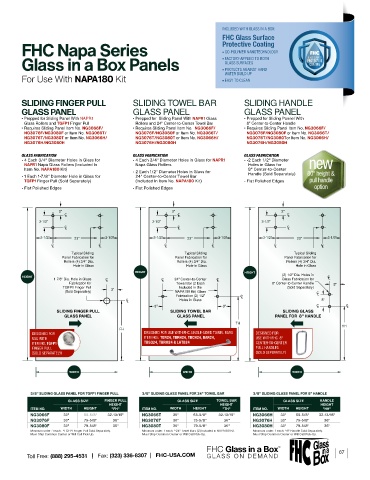

INCLUDED WITH GLASS IN A BOX:
FHC Glass Surface
FHC Napa Series Protective Coating
• CO-POLYMER NANOTECHNOLOGY
Glass in a Box Panels • FACTORY-APPLIED TO BOTH
GLASS SURFACES
• PROTECTS AGAINST HARD
For Use With NAPA180 Kit WATER BUILD UP
NAPA NAPA • EASY TO CLEAN
SLIDING FINGER PULL SLIDING TOWEL BAR SLIDING HANDLE
GLASS PANEL GLASS PANEL GLASS PANEL
• Prepped for Sliding Panel With NAPR1 • Prepped for Sliding Panel With NAPR1 Glass • Prepped for Sliding Pannel With
Glass Rollers and TGFP1 Finger Pull Rollers and 24" Center-to-Center Towel Bar 8" Center-to-Center Handle
• Requires Sliding Panel Item No. NG3066F/ • Requires Sliding Panel Item No. NG3066F/ • Requires Sliding Panel Item No. NG3066F/
NG3076F/NG3080F or Item No. NG3066T/ NG3076F/NG3080F or Item No. NG3066T/ NG3076F/NG3080F or Item No. NG3066T/
NG3076T/NG3080T or Item No. NG3066H/ NG3076T/NG3080T or Item No. NG3066H/ NG3076T/NG3080Tor Item No. NG3066H/
NG3076H/NG3080H NG3076H/NG3080H NG3076H/NG3080H
GLASS FABRICATION GLASS FABRICATION GLASS FABRICATION
• 4 Each 3/4" Diameter Holes in Glass for • 4 Each 3/4" Diameter Holes in Glass for NAPR1 • • 2 Each 1/2" Diameter new
NAPR1 Napa Glass Rollers (Included In Napa Glass Rollers Holes in Glass for
Item No. NAPA180 Kit) • 2 Each 1/2" Diameter Holes in Glass for 8" Center-to-Center
• 1 Each 1-7/8" Diameter Hole in Glass for 24" Center-to-Center Towel Bar Handle (Sold Separately) 80" height &
TGFP1 Finger Pull (Sold Separately) (Included In Item No. NAPA180 Kit) • Flat Polished Edges pull handle
• Flat Polished Edges • Flat Polished Edges option
2" 2" 2"
C L C L C L
3-1/2" 3-1/2" 3-1/2"
C L C L C L
3-1/2" 23" 3-1/2" 3-1/2" 23" 3-1/2" 3-1/2" 23" 3-1/2"
C L C L C L C L C L C L
Typical Sliding Typical Sliding Typical Sliding
Panel Fabrication for Panel Fabrication for Panel Fabrication for
Rollers (4) 3/4" Dia. Rollers (4) 3/4" Dia. Rollers (4) 3/4" Dia.
Hole in Glass Hole in Glass Hole in Glass
HEIGHT HEIGHT
HEIGHT (2) 1/2" Dia. Holes in
1-7/8" Dia. Hole in Glass C L C L 24" Center-to-Center C L Glass Fabrication for C L
Fabrication for Towel Bar (2 Each 8" Center-to-Center Handle 3"
TGFP1 Finger Pull Included in the (Sold Separately)
(Sold Separately) 3" NAPA180 Kit) Glass
C L
Fabrication (2) 1/2" C L
C L Holes in Glass 8"
3" 3" C L C L
SLIDING FINGER PULL SLIDING TOWEL BAR SLIDING GLASS
GLASS PANEL GLASS PANEL PANEL FOR 8" HANDLE
TH
HH
FH
DESIGNED FOR DESIGNED FOR USE WITH FHC SINGLE-SIDED TOWEL BARS DESIGNED FOR
USE WITH ITEM NOs. TBR24, TBRN24, TBCN24, BAR24, USE WITH FHC 8"
ITEM NO. TGFP1 TBSQ24, TBRM24 & LHTB24 CENTER-TO-CENTER
FINGER PULL PULL HANDLES
(SOLD SEPARATELY) (SOLD SEPERATELY)
WIDTH WIDTH WIDTH
3/8" SLIDING GLASS PANEL FOR TGFP1 FINGER PULL 3/8" SLIDING GLASS PANEL FOR 24" TOWEL BAR 3/8" SLIDING GLASS PANEL FOR 8" HANDLE
GLASS SIZE FINGER PULL GLASS SIZE TOWEL BAR GLASS SIZE HANDLE
HEIGHT HEIGHT HEIGHT
ITEM NO. WIDTH HEIGHT "FH" ITEM NO. WIDTH HEIGHT "TH" ITEM NO. WIDTH HEIGHT "HH"
NG3066F 30" 65-5/8" 32-13/16" NG3066T 30" 65-5/8" 32-13/16" NG3066H 30" 65-5/8" 32-13/16"
NG3076F 30" 75-5/8" 36" NG3076T 30" 75-5/8" 36" NG3076H 30" 75-5/8" 36"
NG3080F 30" 79-5/8" 36" NG3080T 30" 79-5/8" 36" NG3080H 30" 79-5/8" 36"
Minimum order: 1 each. *TGFP1 Finger Pull Sold Separately. Minimum order: 1 each. *24" Towel Bars (2) Included in NAPA180 Kit. Minimum order: 1 each. *8" Handle Sold Separately.
Must Ship Common Carrier or Will Call Pick-Up. Must Ship Common Carrier or Will Call Pick-Up. Must Ship Common Carrier or Will Call Pick-Up.
