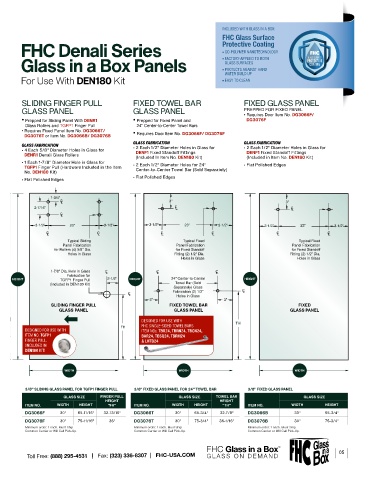

Page 7 - FGB26

INCLUDED WITH GLASS IN A BOX:
FHC Glass Surface
FHC Denali Series Protective Coating
• CO-POLYMER NANOTECHNOLOGY
Glass in a Box Panels • FACTORY-APPLIED TO BOTH
GLASS SURFACES
• PROTECTS AGAINST HARD
WATER BUILD UP
For Use With DEN180 Kit • EASY TO CLEAN

SLIDING FINGER PULL FIXED TOWEL BAR FIXED GLASS PANEL
GLASS PANEL GLASS PANEL PREPPED FOR FIXED PANEL
• Requires Door Item No. DG3066F/
• Prepped for Sliding Panel With DENR1 • Prepped for Fixed Panel and DG3076F
Glass Rollers and TGFP1 Finger Pull 24" Center-to-Center Towel Bars
• Requires Fixed Panel Item No. DG3066T/
DG3076T or Item No. DG3066B/ DG3076B • Requires Door Item No. DG3066F/ DG3076F
GLASS FABRICATION GLASS FABRICATION
GLASS FABRICATION • 2 Each 1/2" Diameter Holes in Glass for • 2 Each 1/2" Diameter Holes in Glass for
• 4 Each 5/8" Diameter Holes in Glass for DENF1 Fixed Standoff Fittings DENF1 Fixed Standoff Fittings
DENR1 Denali Glass Rollers (Included In Item No. DEN180 Kit) (Included in Item No. DEN180 Kit)
• 1 Each 1-7/8" Diameter Hole in Glass for • 2 Each 1/2" Diameter Holes for 24" • Flat Polished Edges
TGFP1 Finger Pull (Hardware Included in the Item Center-to-Center Towel Bar (Sold Separately)
No. DEN180 Kit)
• Flat Polished Edges • Flat Polished Edges

1-3/4"
C L 3" 3"
2-7/16" C L C L
C L
3-1/2" 23" 3-1/2" 3-1/2" 23" 3-1/2" 3-1/2" 23" 3-1/2"
C L C L C L C L C L C L
Typical Sliding Typical Fixed Typical Fixed
Panel Fabrication Panel Fabrication Panel Fabrication
for Rollers (4) 5/8" Dia. for Fixed Standoff for Fixed Standoff
Holes in Glass Fitting (2) 1/2" Dia. Fitting (2) 1/2" Dia.
Holes in Glass Holes in Glass

1-7/8" Dia. Hole in Glass C L C L C L
Fabrication for
HEIGHT TGFP1 Finger Pull 2-1/2" HEIGHT 24" Center-to-Center HEIGHT
(Included in DEN180 Kit) Towel Bar (Sold
Separately) Glass
Fabrication (2) 1/2" C L
C L
Holes in Glass
3" 3"
SLIDING FINGER PULL FIXED TOWEL BAR FIXED
GLASS PANEL GLASS PANEL GLASS PANEL
DESIGNED FOR USE WITH TH
FH FHC SINGLE-SIDED TOWEL BARS
DESIGNED FOR USE WITH ITEM NOs. TBR24, TBRN24, TBCN24,
ITEM NO. TGFP1 BAR24, TBSQ24, TBRM24
FINGER PULL. & LHTB24
(INCLUDED IN
DEN180 KIT)

WIDTH WIDTH WIDTH

3/8" SLIDING GLASS PANEL FOR TGFP1 FINGER PULL 3/8" FIXED GLASS PANEL FOR 24" TOWEL BAR 3/8" FIXED GLASS PANEL
GLASS SIZE FINGER PULL GLASS SIZE TOWEL BAR GLASS SIZE
HEIGHT HEIGHT
ITEM NO. WIDTH HEIGHT "FH" ITEM NO. WIDTH HEIGHT "TH" ITEM NO. WIDTH HEIGHT
DG3066F 30" 65-11/16" 32-13/16" DG3066T 30" 65-3/4" 32-7/8" DG3066B 30" 65-3/4"
DG3076F 30" 75-11/16" 36" DG3076T 30" 75-3/4" 36-1/16" DG3076B 30" 75-3/4"
Minimum order: 1 each. Must Ship Minimum order: 1 each. Must Ship Minimum order: 1 each. Must Ship
Common Carrier or Will Call Pick-Up. Common Carrier or Will Call Pick-Up. Common Carrier or Will Call Pick-Up.

FHC Glass in a Box ™ 05
Toll Free: (888) 295-4531 | Fax: (323) 336-8307 | FHC-USA.COM GLASS ON DEMAND
