Page 12 - FGB26

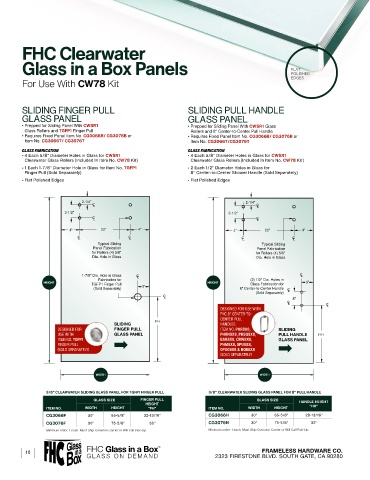

FHC Clearwater

Glass in a Box Panels FLAT

POLISHED
For Use With CW78 Kit EDGES

SLIDING FINGER PULL SLIDING PULL HANDLE
GLASS PANEL GLASS PANEL
• Prepped for Sliding Panel With CWSR1 • Prepped for Sliding Panel With CWSR1 Glass
Glass Rollers and TGFP1 Finger Pull Rollers and 8" Center-to-Center Pull Handle
• Requires Fixed Panel Item No. CG3066B/ CG3076B or • Requires Fixed Panel Item No. CG3066B/ CG3076B or
Item No. CG3066T/ CG3076T Item No. CG3066T/CG3076T
GLASS FABRICATION GLASS FABRICATION
• 4 Each 5/8" Diameter Holes in Glass for CWSR1 • 4 Each 5/8" Diameter Holes in Glass for CWSR1
Clearwater Glass Rollers (Included In Item No. CW78 Kit) Clearwater Glass Rollers (Included In Item No. CW78 Kit)
• 1 Each 1-7/8" Diameter Hole in Glass for Item No. TGFP1 • 2 Each 1/2" Diameter Holes in Glass for
Finger Pull (Sold Separately) 8" Center-to-Center Shower Handle (Sold Separately)
• Flat Polished Edges • Flat Polished Edges

2-1/4" 2-1/4"
C L C L
3-1/2" 3-1/2"
C L C L
4" 22" 4" 4" 22" 4"
C L C L C L C L
Typical Sliding Typical Sliding
Panel Fabrication Panel Fabrication
for Rollers (4) 5/8" for Rollers (4) 5/8"
Dia. Hole in Glass Dia. Hole in Glass

1-7/8" Dia. Hole in Glass C L C L
Fabrication for (2) 1/2" Dia. Holes in
HEIGHT HEIGHT 3"
TGFP1 Finger Pull 3" Glass Fabrication for
(Sold Separately) 8" Center-to-Center Handle
C L
(Sold Separately)
C L
8"
C L
C L
DESIGNED FOR USE WITH
FHC 8" CENTER-TO-
CENTER PULL
FH
SLIDING HANDLES
DESIGNED FOR FINGER PULL ITEM NO. PHR8X8, SLIDING
USE WITH GLASS PANEL PHRN8X8, PHSQ8X8, PULL HANDLE HH
ITEM NO. TGFP1 BAR8X8, CRW8X8, GLASS PANEL
FINGER PULL PHM8X8, 0PU8X8,
(SOLD SEPARATELY) 0PU08X8 & N0B8X8
(SOLD SEPARATELY)
WIDTH WIDTH
3/8" CLEARWATER SLIDING GLASS PANEL FOR TGFP1 FINGER PULL 3/8" CLEARWATER SLIDING GLASS PANEL FOR 8" PULL HANDLE
GLASS SIZE FINGER PULL GLASS SIZE HANDLE HEIGHT
HEIGHT "HH"
ITEM NO. WIDTH HEIGHT "FH" ITEM NO. WIDTH HEIGHT
CG3066F 30" 65-5/8" 32-13/16" CG3066H 30" 65-5/8" 28-13/16"
CG3076F 30" 75-5/8" 36" CG3076H 30" 75-5/8" 32"
Minimum order: 1 each. Must Ship Common Carrier or Will Call Pick-Up. Minimum order: 1 each. Must Ship Common Carrier or Will Call Pick-Up.

10 FHC Glass in a Box ™ FRAMELESS HARDWARE CO.
GLASS ON DEMAND 2323 FIRESTONE BLVD. SOUTH GATE, CA 90280
